Paughco Sportster Frame Custom: Old Parts, New Bike

When a used motorcycle parts shop owner builds a fenderless custom sportster to match his 1950s-era style Ford street rod, only good things will happen.

This story was originally posted here in May 2011.

Build Summary:

  • Paughco frame
  • 1994 1,200cc Harley-Davidson Sportster motor
  • Custom two-into-one exhaust system
  • Stripped and polished Honda Comstar wheels
  • Squared off Avon Speedmaster Mk II TT tires
  • Forks from a 1980 Honda CB750
  • Steering stem with one from a Harley-Davidson
  • 4” under tubes by Forking by Frank
  • Solo saddle
  • Custom leaf spring suspension system
  • Single-cap Mustang gas tank
  • Unique hand shift lever
  • Electric controls for the starter button, lights, and signal lights
TJ Cycle's Sportster Custom single cap Mustang gas tank
TJ Cycle’s Sportster Custom dubbed ‘Miss Behavin’. Photo: Amee Reehal

Creating something from nothing is what Mark Blundell does best. Well, not literally nothing, but from spare parts belonging to a variety of different machines that might otherwise go to waste. Blundell owns and operates Calgary’s TJ’s Cycle, a well-known motorcycle used parts emporium, and his overflowing yard chock-full of exhaust systems, wheels, front ends and controls is his playground.

“A good 80 percent of the pleasure in the hobby is in building. Get something in the vise, cut it up, and make it work – there’s more satisfaction than bolting pieces ordered from a catalog.”

Mark Blundell, the bike’s builder and owner

Over the years, Blundell has built many different custom motorcycles – some for himself and others for clients (like his badass Honda XR500 Speedway Replica). First and foremost, a machinist and custom motorcycle builder, Blundell has also washed windows, sold cemetery plots, and worked with a chiropractor as a massage therapist. Born and raised in Coventry, England, he moved to Canada in 1988, stopping first in Windsor, Ontario before heading west to the mountains in 1989. In 1998 he purchased TJ’s Cycle, and is celebrating his tenth year in the trade.

Slotting a 1,200cc Harley-Davidson Sportster Motor into a Standard Paughco Rigid Frame

TJ Cycle's Sportster Custom
TJ Cycle’s Sportster Custom. Photo: Amee Reehal

Blundell is currently building a 1930 Ford Model A coupe street rod in a 1950s-era style, and he wanted a bike to show alongside the car. He’s been working on the car for more than eight years – however, the motorcycle was completed first. As the car will be fenderless, so too is the bike. But Blundell says his original inspiration was taken from a Performance Machine custom Sportster. He wanted to build a similar, yet more economical version to match his hotrod.

TJ Cycle's Sportster Custom engine
TJ Cycle’s Sportster Custom with the 1994 1,200cc Harley-Davidson Sportster motor. Photo: Amee Reehal

The entire project began when Blundell slotted a 1994 1,200cc Harley-Davidson Sportster motor into a standard Paughco rigid frame. Blundell had purchased the motor years ago, and had kept it waiting on the shelf. He ordered his Paughco frame with no extra rake or stretch.

The One-Off Custom Touches

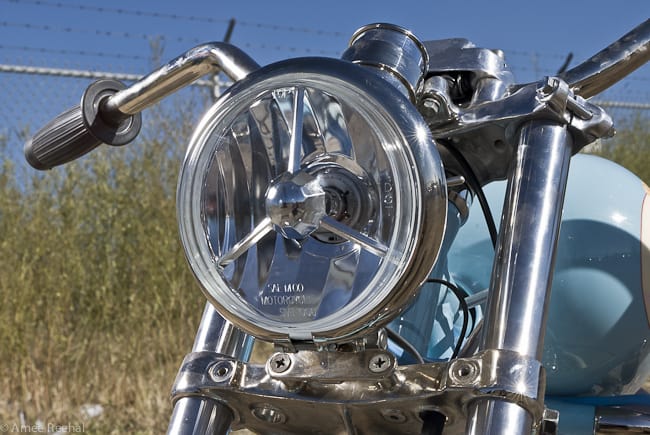

Next came the Honda Comstar wheels, stripped and painstakingly polished by Wesley McRadu. Squared off Avon Speedmaster Mk II TT tires – 4.00-18” rear and 4.00-19” front wrap the rims. To anchor the front end, Blundell found a set of forks from a 1980 Honda CB750. For the Honda’s metric lower tree to fit the Paughco Imperial headstock, Blundell replaced the steering stem with one from a Harley-Davidson, making it a 1” item. And to give the bike a lower stance, new 4” under tubes by Forking by Frank were installed, together with shortened springs. The two hoops over the front wheel do serve a purpose – the rear is solid bar, and it acts as a fork brace, while the front one is hollow and carries the wire to the opposite side signal light.

sportster custom
TJ Cycle’s Sportster Custom. Photo: Amee Reehal

With the wheels and forks and engine in the frame Blundell set about putting together several more one-off custom touches, including mounting the solo saddle in a very unusual manner. Blundell didn’t want any exposed seat springs, so he devised a leaf spring suspension system. From his brother-in-law David Wright, who works at local spring and suspension specialist Standens in Calgary, he sourced a 2” wide by 18” long single leaf. The spring is welded to the frame’s backbone underneath the single-cap Mustang gas tank. “The spring works well, it’s got good tension, and it’s not uncomfortable,” Blundell says of the ride. In order to clear the leaf spring Blundell built brackets to raise the Mustang tank above the frame.

Cardboard templates were used as patterns for the sheet steel oil tank/partial rear fender/battery tray unit. The vessel holds three litres of oil and is neatly shaped to mirror the line of the rear wheel. One of Blundell’s goals was to keep the 7/8” handlebars as clean as possible. Aiding this endeavour is an internal throttle originally intended to fit 1” bars machined down to fit the smaller diameter tillers. With the throttle hidden, Blundell got rid of the front brake lever by proportioning the front and rear Honda disc brakes through the right foot brake pedal.

TJ Cycle's Sportster Custom 1994 Harley-Davidson motor
TJ Cycle’s Sportster Custom. Photo: Amee Reehal

But with both brakes on one foot control, how was Blundell ever going to manage getting underway when stopped on a hill? A unique hand shift lever on the left side of the bike pivots just under the gas tank, and takes care of the clutch and gearbox. That means Blundell can keep his left foot on the ground while pulling in the clutch and shifting into first gear, while his right foot has the binders firmly clamped. Also mounted on the shifter are the electric controls for the starter button, lights and signal lights. “That captures a lot of people’s attention,” Blundell says of the novel hand shifter. Honda’s original idiot lights, in the polished housing and mounted atop the forks, are all wired up and do function.

The motor didn’t receive too much attention. It was cleaned and freshened, and Blundell created a two-into-one exhaust system that dumps out the left side of the bike just behind the rider’s leg. The pipe from the rear cylinder actually comes forward and wraps around the front cylinder, where on the left side of the motor both pipes collect into a single turnout.

TJ Cycle's Sportster Custom airbrushed Mustang gas tank

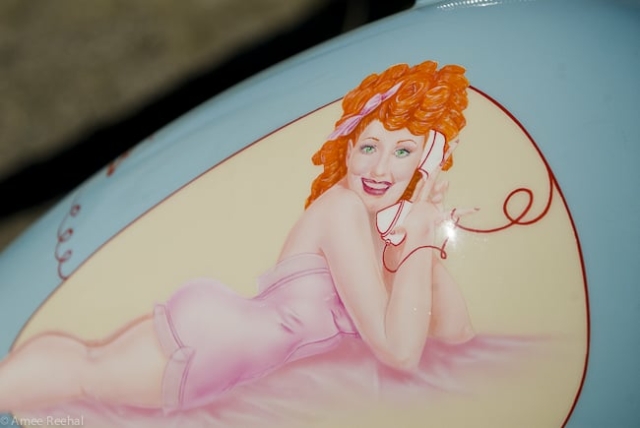

TJ Cycle’s Sportster Custom with art by Ryan Veness from Blood Shot Airbrushing. Photo: Amee Reehal

To put the finishing touches on the bike Blundell had the frame, gas tank, oil tank and fork lowers sprayed a robin’s egg blue. This is the same colour he plans on painting his Ford hotrod. Ryan Veness from Blood Shot Airbrushing in Calgary painted the two pin-up girls, joined by the telephone wire between their two receivers. Blundell nicknamed the bike Miss Behavin, while the car, when completed, will be called Miss Chievous. As for the shiny bits, there is no chrome on the bike, everything was either nickel plated or polished. “I wanted an older, tarnished look, and didn’t want the bling of chrome – nickel is yellower and mellower,” he says.

TJ Cycle's Sportster Custom airbrushed custom Mustang gas tank
TJ Cycle’s Sportster Custom with art by Ryan Veness from Blood Shot Airbrushing. Photo: Amee Reehal

Of his custom bike-building philosophy, Blundell concludes, “I believe in always creating and using what’s on hand.” He adds, “A good 80 percent of the pleasure in the hobby is in building. Get something in the vise, cut it up, and make it work – there’s more satisfaction than bolting pieces ordered from a catalog.”

Photos: Amee Reehal
